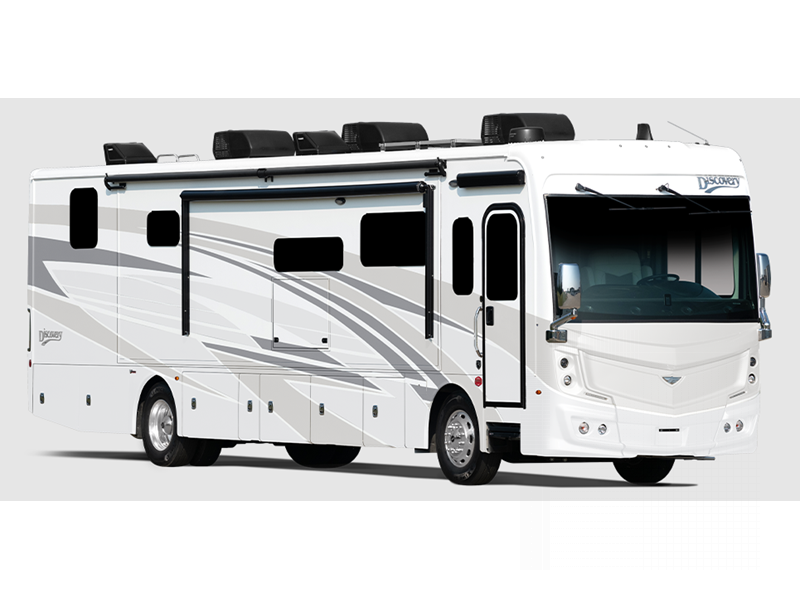

Fleetwood RV Discovery Motor Home Class A - Diesel

Previous
Next
1 of 35

The Fleetwood Discovery Class A diesel motorhome allows you to enjoy all the moments on the open road with practical features and luxury amenities as an added bonus!



Each Discovery begins with Power Bridge chassis construction, welded Powerframes Precision, the PowerLock system interlocking floors, walls and the ceiling, and a raised space frame foundation.  You will find features such as Aqua-Hot heating, two 15K BTU roof A/Cs, and a 360HP Cummins engine.  The chic cabinetry and hardware, the front zone tile floor heat, the electric fireplace, and the exterior entertainment with a 48" TV including soundbar offer additional amenities you are sure to enjoy!



It's time to venture into the unknown with your favorite Fleetwood Discovery Class A diesel coach to discover new places whenever you like!

  • Specifications

    Sleeps 4
    Slides 4
    Length 40 ft 1 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Celestial-Grey, Ridgeland-Taupe, Savoy-Tan

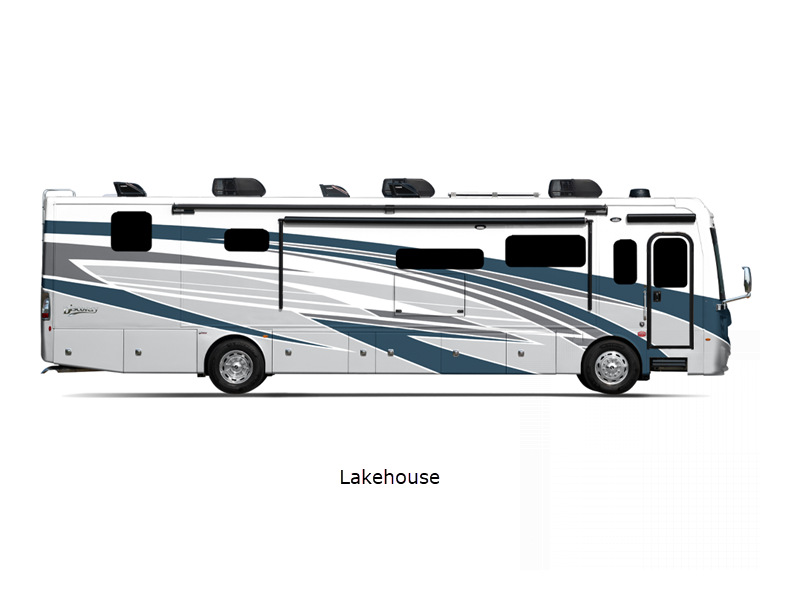

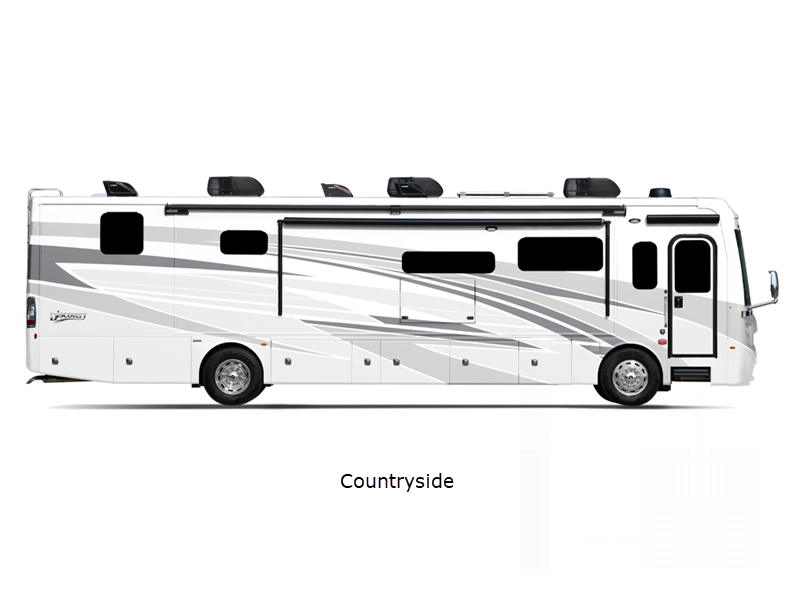

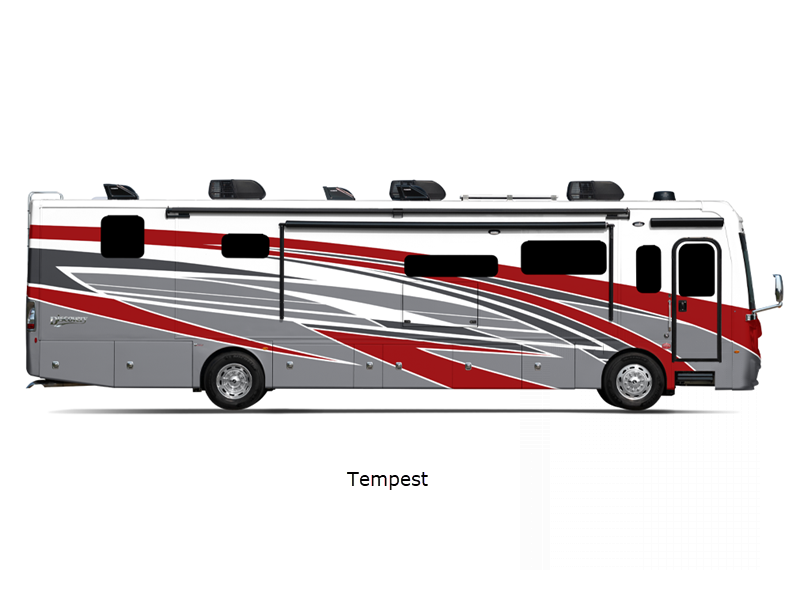

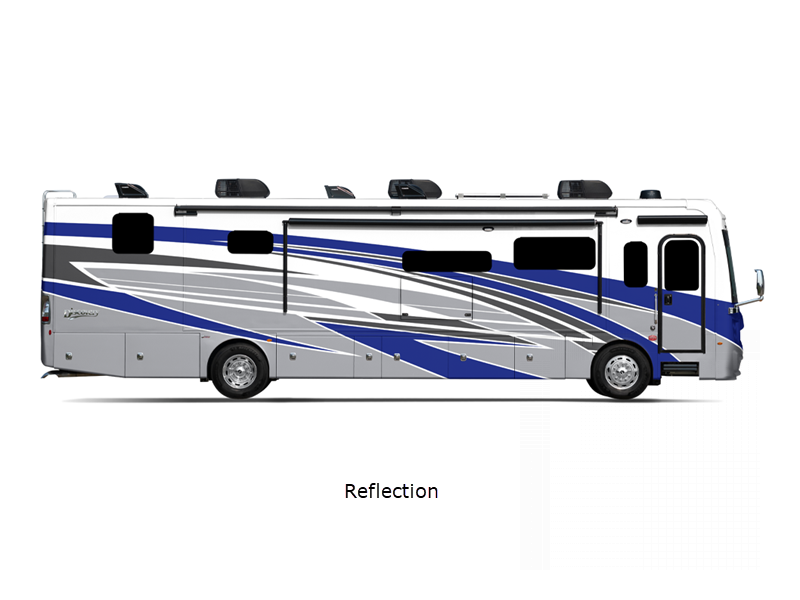

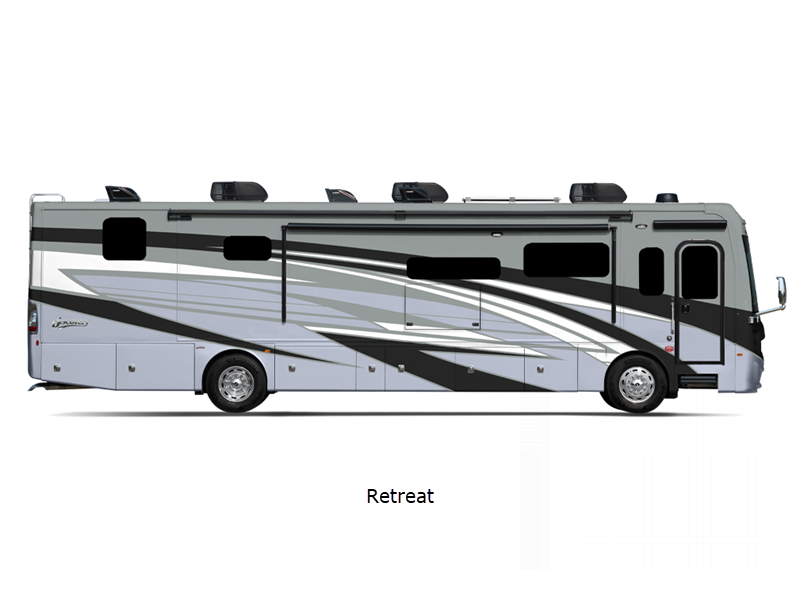

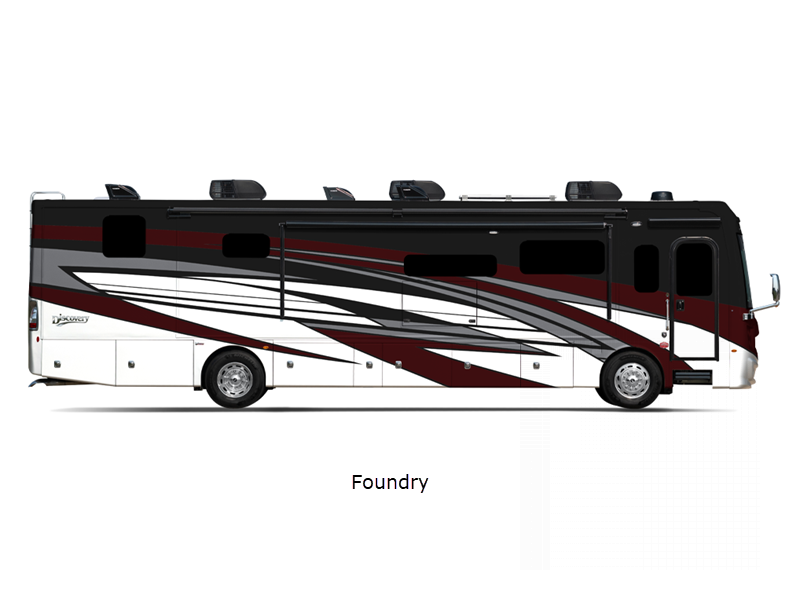

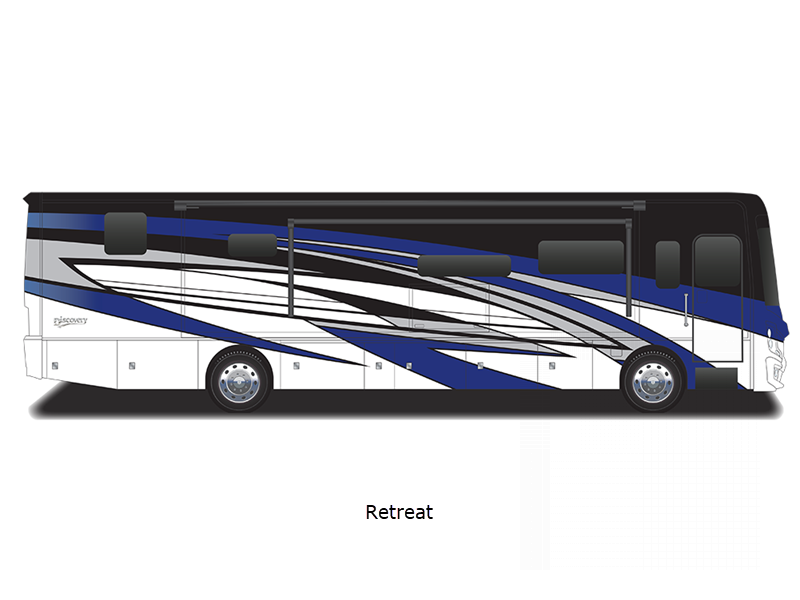

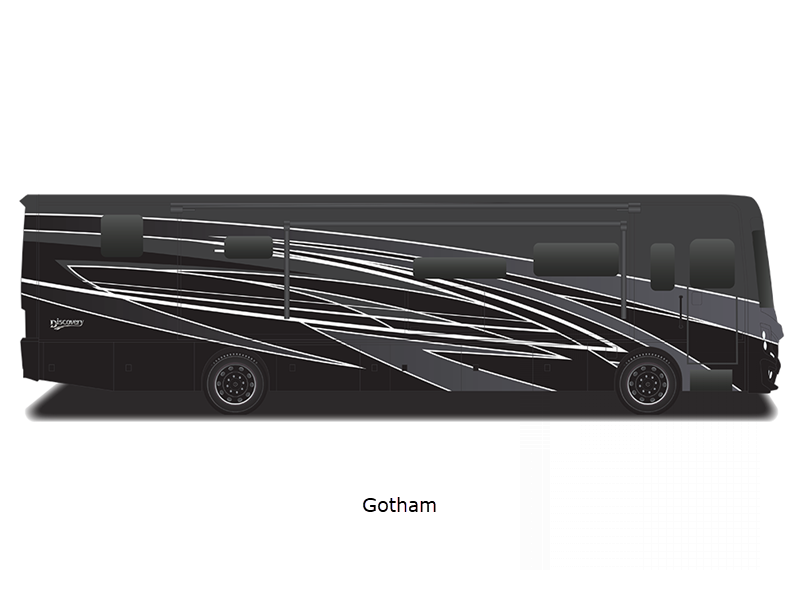

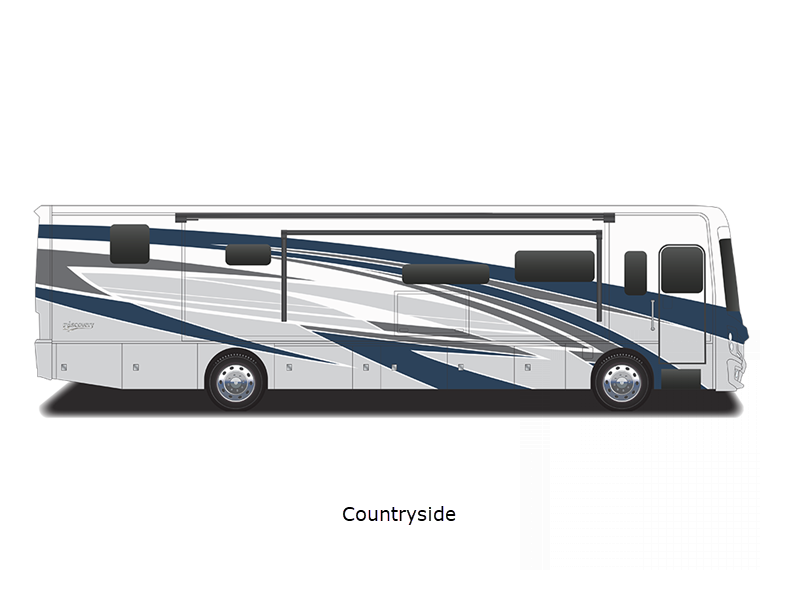

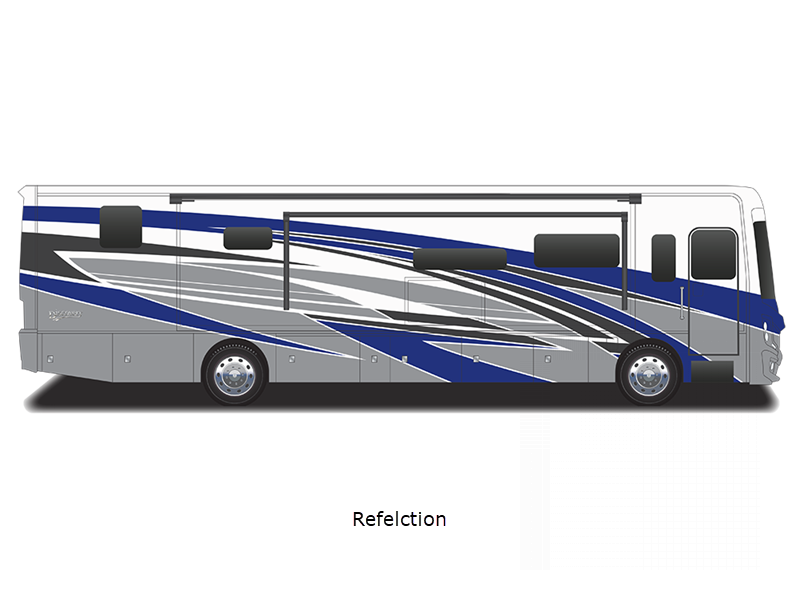

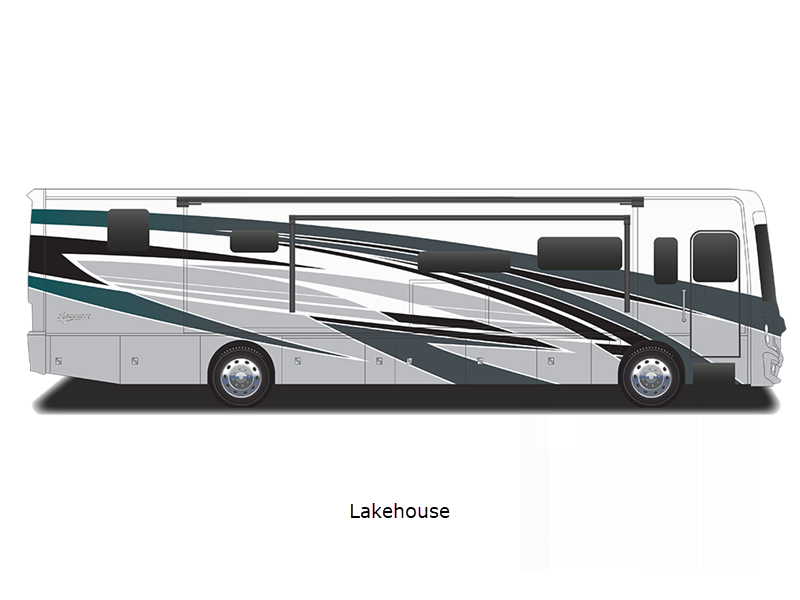

    Exterior Color Aquarius, Pinnacle, Luminous, Rainier
    Hitch Weight 10000 lbs
    Gross Weight 33400 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 75 gals
    Black Water Capacity 50 gals
    Tire Size 275/80R22.5
    Generator 8.0 KW Onan Quiet Diesel
    Fuel Type Diesel
    Engine Cummins ISB 6.7L
    Chassis Freightliner XCM Series
    Horsepower 360 hp
    Fuel Capacity 100 gals
    Wheelbase 263 in
    Available Beds King
    Torque 800 ft-lb
    Refrigerator Type Two Door Residential Stainless Steel
    Refrigerator Size 19 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Axle Weight Front 12400 lbs
    Axle Weight Rear 21000 lbs
    Water Heater Type 400 Aqua Hot
    AC BTU 30000 btu
    Basement Storage 156 cu. ft.
    TV Info LR 49" LED TV, BR 43" LED TV, Cab 32" LED, Ext. 48" TV
    Awning Info 19'6" Electric w/LED Lighting and Wind Sensor Retract
    Washer/Dryer Available Yes
    Gross Combined Weight 43400 lbs

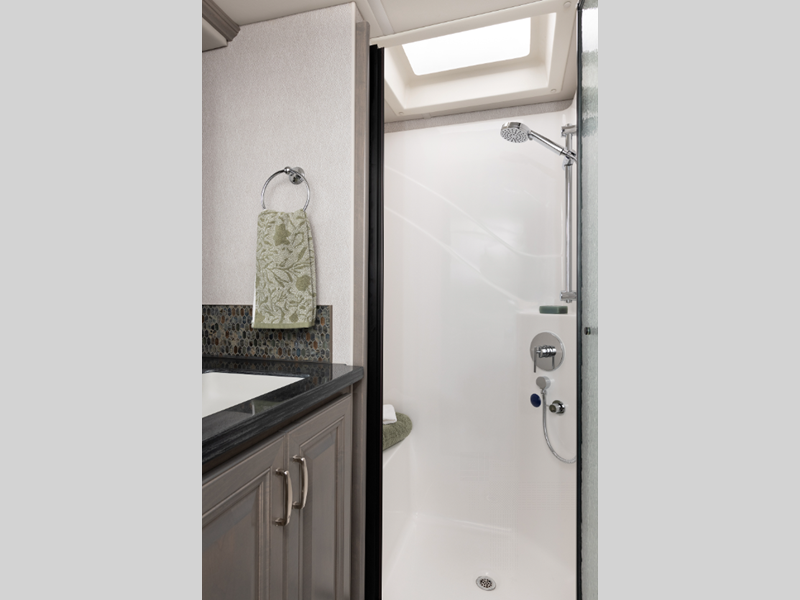

    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Discovery 38K

    Discovery 38K Floorplan Image

    Fleetwood Discovery Class A diesel motorhome 38K highlights: Full Wall Slide ... more about Discovery 38K

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 3
    Length 38 ft 8 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Celestial-Grey, Ridgeland-Taupe, Savoy-Tan
    Exterior Color Aquarius, Pinnacle, Luminous, Rainier
    Hitch Weight 10000 lbs
    Gross Weight 33400 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 75 gals
    Black Water Capacity 50 gals
    Tire Size 275/80R22.5
    Generator 8.0 KW Onan Quiet Diesel
    Fuel Type Diesel
    Engine Cummins ISB 6.7L
    Chassis Freightliner XCM Series
    Horsepower 360 hp
    Fuel Capacity 100 gals
    Wheelbase 252 in
    Available Beds King
    Torque 800 ft-lb
    Refrigerator Type Two Door Residential Stainless Steel
    Refrigerator Size 19 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Axle Weight Front 12400 lbs
    Axle Weight Rear 21000 lbs
    Water Heater Type 400 Aqua Hot
    AC BTU 30000 btu
    Basement Storage 156 cu. ft.
    TV Info LR 43" LED TV, BR 32" & Cab 32" LED, Ext. 48" TV
    Awning Info 18' Electric w/LED Lighting and Wind Sensor Retract
    Washer/Dryer Available Yes
    Gross Combined Weight 43400 lbs
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

  • Discovery 38N

    Discovery 38N Floorplan Image

    Fleetwood Discovery Class A diesel motorhome 38N highlights: Two Full Bathrooms ... more about Discovery 38N

    Specifications

    Sleeps 7
    Slides 3
    Length 38 ft 8 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Celestial-Grey, Ridgeland-Taupe, Savoy-Tan
    Exterior Color Aquarius, Pinnacle, Luminous, Rainier
    Hitch Weight 10000 lbs
    Gross Weight 33400 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 75 gals
    Black Water Capacity 50 gals
    Tire Size 275/80R22.5
    Generator 8.0 KW Onan Quiet Diesel
    Fuel Type Diesel
    Engine Cummins ISB 6.7L
    Chassis Freightliner XCM Series
    Horsepower 360 hp
    Fuel Capacity 100 gals
    Wheelbase 252 in
    Number Of Bunks 2
    Available Beds King
    Torque 800 ft-lb
    Refrigerator Type Two Door Residential Stainless Steel
    Refrigerator Size 19 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Axle Weight Front 12400 lbs
    Axle Weight Rear 21000 lbs
    Water Heater Type 400 Aqua Hot
    AC BTU 30000 btu
    Basement Storage 156 cu. ft.
    TV Info LR 43" LED TV, BR & Cab 32" LED, Bunks (2) LED TV/DVD Combo, Ext. 48" TV
    Awning Info 18' Electric w/LED Lighting and Wind Sensor Retract
    Washer/Dryer Available Yes
    Gross Combined Weight 43400 lbs
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

  • Discovery 38W

    Discovery 38W Floorplan Image

    Fleetwood Discovery Class A diesel motorhome 38W highlights: Full and Half Bath ... more about Discovery 38W

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 3
    Length 40 ft 1 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Celestial-Grey, Ridgeland-Taupe, Savoy-Tan
    Exterior Color Aquarius, Pinnacle, Luminous, Rainier
    Hitch Weight 10000 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 75 gals
    Black Water Capacity 50 gals
    Generator 8.0 KW Onan Quiet Diesel
    Fuel Type Diesel
    Engine Cummins ISB 6.7L
    Chassis Freightliner XCM Series
    Horsepower 360 hp
    Fuel Capacity 100 gals
    Wheelbase 263 in
    Available Beds King
    Torque 800 ft-lb
    Refrigerator Type Two Door Residential w/Freezer w/Icemaker
    Refrigerator Size 19 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Axle Weight Front 12400 lbs
    Axle Weight Rear 21000 lbs
    Water Heater Type 400 Aqua Hot
    AC BTU 30000 btu
    Basement Storage 156 cu. ft.
    TV Info LR 49" Pop-Up LED TV, BR 32" & Cab 32" LED, Ext. 48" TV
    Awning Info 18' Electric w/LED Lighting and Wind Sensor Retract
    Washer/Dryer Available Yes
    Gross Combined Weight 43400 lbs
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

Discovery Features:

Standard Features (2019)



Construction

  • Power Bridge® Chassis Construction
  • Powerframes™ Precision Welding
  • Aluminum Interlocking Frames
  • Welded Tubular Aluminum Roof & Sidewall Cage Construction
  • Powerlock System™ (Interlocking Floors, Walls and Ceiling)
  • Vacu-Bond Aluminum Framed Constructed Sidewalls, Floor, Roof
  • Standard Ducted Air A/C
  • Raised Space Frame Foundation
  • Solid Bead-Foam Engineered Fit Insulation
  • Full Pass Through Basement Storage w/ Composite Floor and Wall Construction w/Lighting
  • Steel Constructed Entry Step Box
  • CSA Build Optional In (38N) (38K) (38F)

Exterior

  • Full Body Paint
  • Aluminum Bus-Style Side Swing Luggage Doors
  • Black Luggage Doors Handles
  • Basement-Pass-Through Storage
  • Lighted Storage Compartments
  • Dual Fuel Fills
  • Door-Side 100V Patio Receptacle
  • Fiberglass Wheel Well Trims
  • Dual Glazed Frameless Flush Mount Windows
  • Seamless Beltline Trim
  • Tapered Slide Out Box Tops & Debris Awnings
  • Easy Slide Storage Tray
  • Patio Lights
  • Awning - Electric Patio Awning w/LED Lighting and Wind Sensor Retract
  • Awning - Electric Entry Awning w/LED Lighting and Wind Sensor Retract
  • Slide Out Awning Toppers Above all Slide outs
  • Rear Ladder
  • Front/Rear Mudflaps
  • Four Point Fully Automatic Hydraulic Leveling Jacks
  • Fiberglass Wheel Well Trims
  • Acrylic Lighted Grab Handle at Entry Door
  • Exterior Lighted Power Entry Step
  • Front, Rear LED Clearance and Marker Lighting
  • Exterior Service Station - Includes: Water Pump Switch, Exterior Shower, Black Tank Flush, City Water Hookup, Towel Holder & Drainage Valves
  • Gravity Water Fill
  • Exterior Park Cable and Satellite Hookup
  • TV Antenna
  • Prep for Roof-Mounted Satellite Dish
  • 100V Exterior Receptacle
  • Full Coverage Heavy Duty Undercoating
  • Power Roof Vents
  • King Stationary Satellite System w/Dish Network Receivers
  • Roof Vent Rain Covers
  • Exterior Slide Out Tray
  • Prep for Solar Panel
  • Under Chassis Lighting

Cab Exterior

  • Two Piece Front Fiberglass Cap with Automotive Headlighting
  • One Piece Rear Fiberglass Cap
  • Hood Insert and Seamless Mounting Access to Generator
  • One Piece Windshield
  • Black Power/Heated Mirrors w/Turn Signals and Side Cameras
  • Daytime Running Lights
  • Tinted Frameless Slider Driver/Passenger Windows
  • Automotive Style Bottom Mount Windshield Wiper System
  • Front Cap Protective Film
  • Generator Slide

Cab Interior

  • New Dash
  • 12V and USB Accessory Ports
  • 110V Power Outlet at Dash
  • 3-Point Seat Belts at Driver & Front Passenger Seats (w/Adjustable Shoulder Straps)
  • Air Suspension Dump Switch
  • Black Instrument Gauges w/Electronic Information Center
  • Aurora High Output Dash Air Conditioning and Heat
  • Automotive Wrap-Around Dash
  • Soft-Touch Automotive Dash
  • Auxiliary Start Circuit Switch
  • Cruise Control
  • Aroura® High-Output Auto A/C Heater Combo
  • Driver and Passenger Front Power Roller Shade
  • Driver and Passenger Side Manual Roller Shades and Blinds
  • Driver Console Cup Holders
  • Driver Chair-Ultra Leather w/Reclining Back, Swivel, and 6-Way Power Controls
  • Passenger Chair-Ultra Leather w/Reclining Back, Swivel, 6-Way Power Controls & Footrest
  • Leatherette Reclining/Swivel Power Adjustable Captain's Chairs (Passenger Seat has Electric Footrest) (N/A)
  • Easy-Access Battery Disconnect System
  • Intermittent Wiper Control
  • Heated Power Exterior Mirrors w/Turn Signals & Side-View Cameras
  • Tilt/Telescoping Steering Wheel
  • Satellite Radio Ready (Requires Subscription)
  • 10" Touchscreen Dash Radio with Bluetooth®, GPS Navigation & Sirius XM Radio Capability
  • Back-Up Monitor with Three Camera System
  • Driver Console w/ Lower Storage Bin
  • Driver/Passenger Cup Holders
  • Air Horns
  • Driver & Passenger Overhead Storage Cabinetry
  • Map Lights
  • Emergency Engine Start Switch
  • Lighted Instrument Panel
  • 12V Disconnect Switch
  • Radio Switch Main/Auxiliary Power at Dash
  • Optional: Hide-A-Loft™ Drop Down Queen Bed with Cotton Cloud™ Mattress (38N) (38K) (38F)

Interior Entry

  • Double Electric Entry Step
  • Power Entry Step Cover
  • Solid Surface Entry Step w/LED Accent Lighting
  • Metal Interior Grab Handle at Entry
  • Entry Door Manual Roller Shades and Blinds
  • Entry Door with Dead Bolt Lock

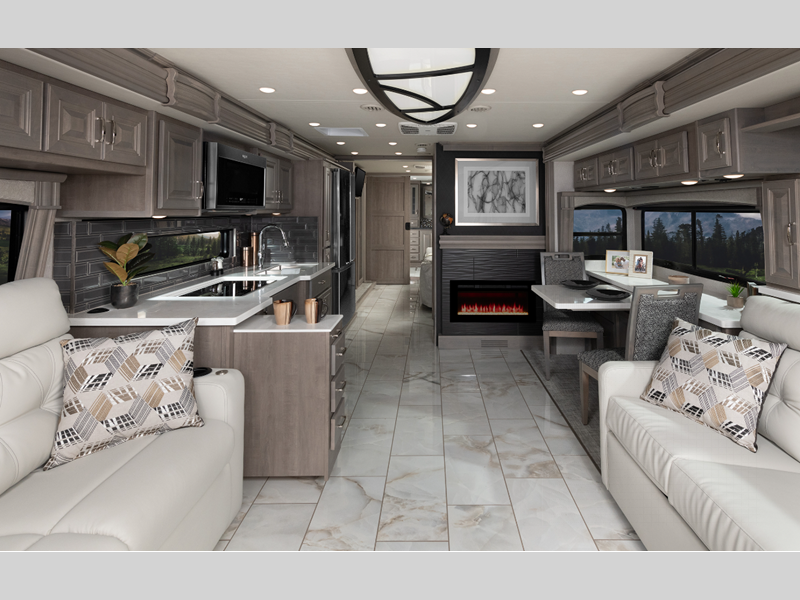

Interior

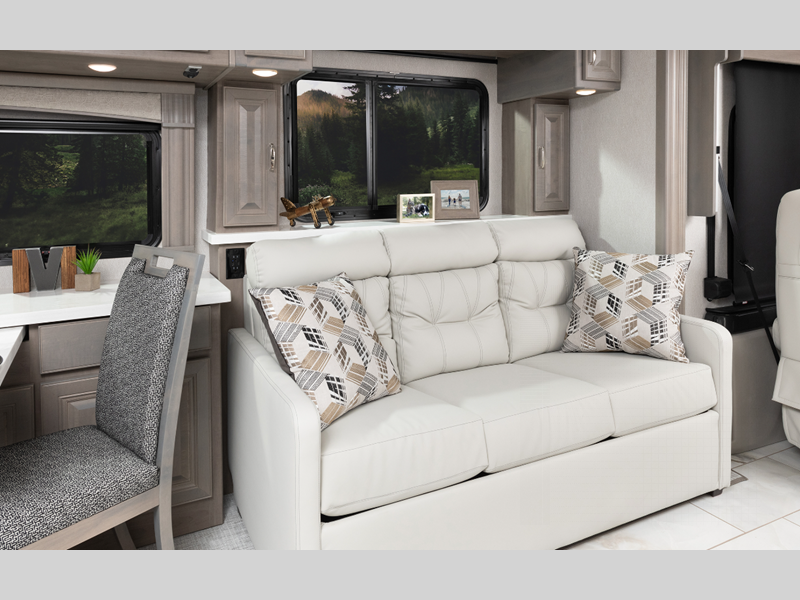

  • Sofa - ComfortFit 60" Sofa Rest Assured (38N)
  • Sofa - ComfortFit Villa 95" x 70" L-Sofa w/Air Bed (38F)
  • Sofa - ComfortFit Villa 81" x 70" L-Sofa w/Jack-Knife (38K)
  • Free Standing Recliner w/Footrest (38F)
  • Free Standing Dinette w/Credenza (38F)
  • U-Shape Dinette (38K)
  • Facing Dinette Booth (38N)

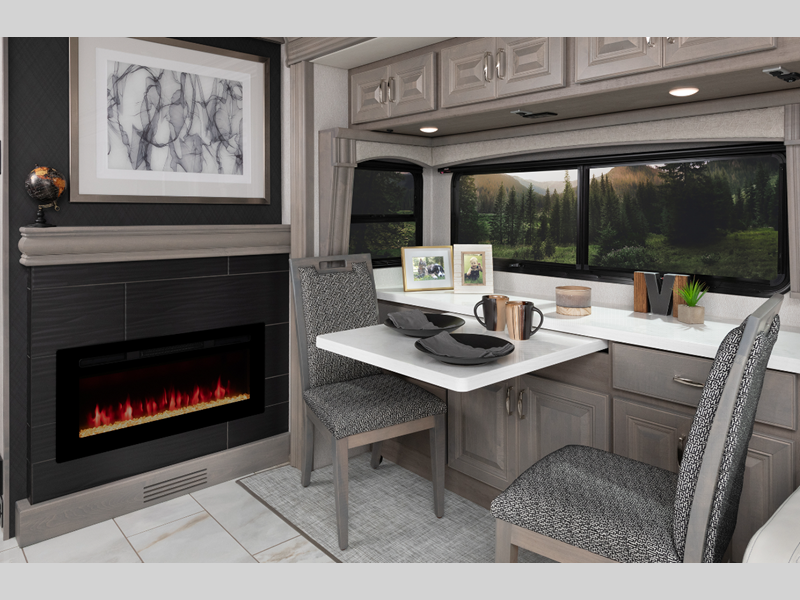

  • Electric Fireplace
  • Interior Flat Soft Touch Vinyl Ceiling
  • 12 x 24 Polished Porcelain Tile Flooring
  • Floor Heat Living Area
  • Safe-T-View Camera System
  • 110V/USB Ports Throughout
  • Energy Efficient LED 3" Puck Flush Mount Ceiling and Accent Wall Lighting Throughout

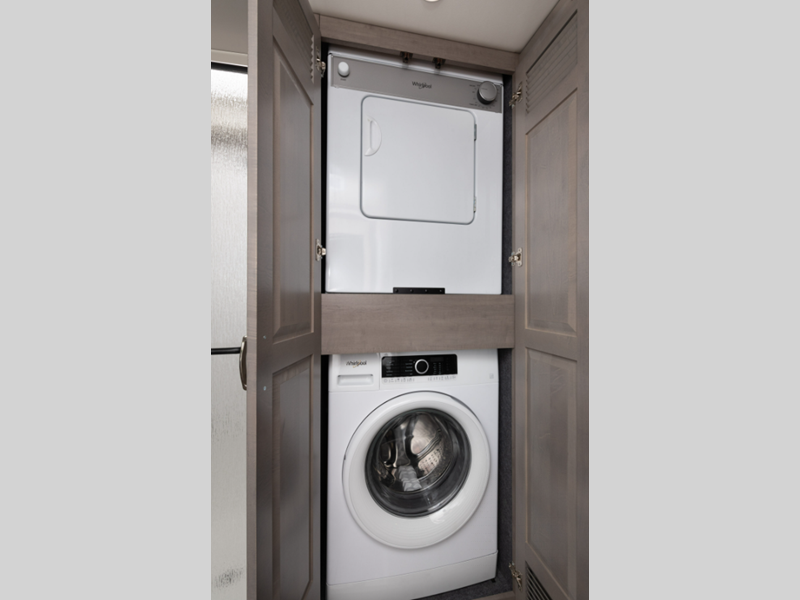

  • Washer and Dryer
  • Manual Day/Night Roller Shades Throughout - Black/Black
  • Hardwood Cabinet Doors/Drawers
  • Select Hardwood Overhead Face Frames
  • Vinyl Style Face Frames
  • Select Hardwood Window Valance/Slide Out Trim
  • ComfortFit Villa Sleeper Sofa Optional in (38F)
  • Facing Dinette Booth Optional In (38F)
  • L-Shape Dinette Optional In (38N)
  • FS Dinette w/Credenza Optional In (38N) (38K)
  • Theater Seats Optional In (38N) (38K)

Kitchen

  • Refrigerator - 19 Cu. Ft. Two Door Residential Stainless Steel - Whirlpool
  • Induction Electric Cooktop (Recessed w/Covers)
  • Stainless Steel Over the Range 1000W Convection Microwave - Whirlpool
  • Polished Solid Surface Galley Countertop
  • Glass Tile Backsplash
  • Deep Double Bowl Undermount Stainless Steel Sink
  • Polished Solid Surface Sink Covers
  • Residential Single Handle Faucet w/Pullout Sprayer - Satin Nickel
  • Manual Night Roller Shade - Black
  • Feature Lighting at Galley Top
  • Waste Basket
  • Fantastic® Power Vent w/Wall Switch
  • Dishwasher Optional In (38N) (38K) (38F)

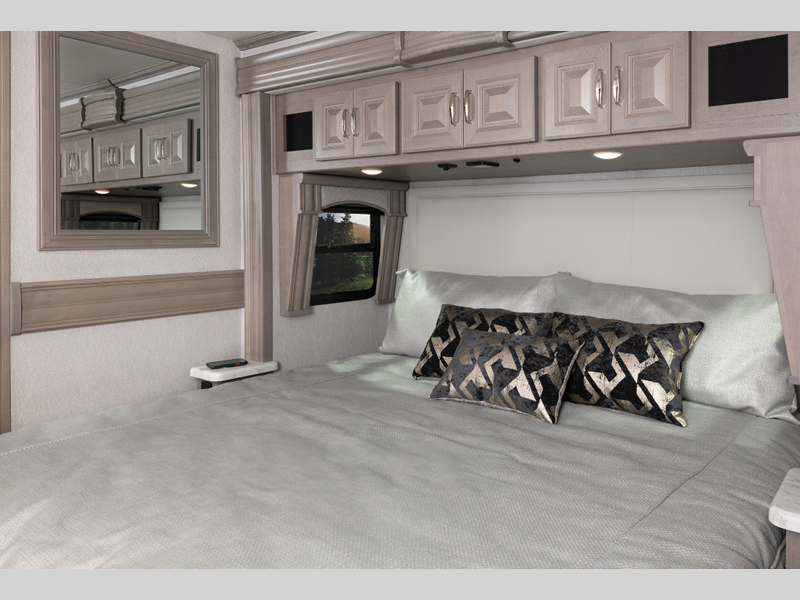

Bedroom or Bunk Area

  • King Size Encore Series Memory Foam Mattress w/Adjustable Head
  • Lift Up Bed with Under Bed Storage
  • Recpet w/USB Charging Ports in Nightstands
  • Designer Bedspread, Pillow Shams & Pillows
  • Coordinating Wood and Fabric Window Treatments and Lambrequins
  • Manual Day/Night Roller Shades
  • Laminated Bedroom Tops

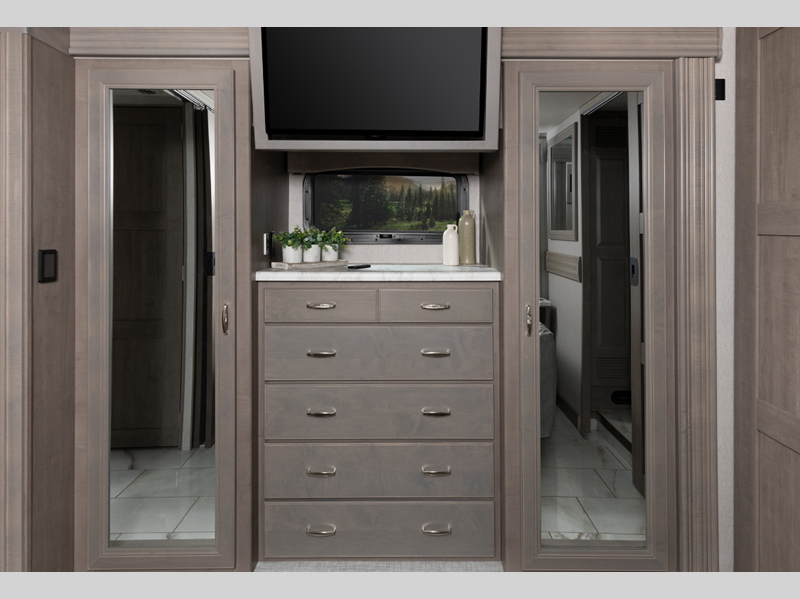

  • Cedar Lined Rear Wardrobe Closet
  • Dual Rear Wardrobe w/Hings Rods (38N) (38K)
  • Full Rear Wardrobe w/Hings Rod (38F)
  • 28" x 73" Bunk Beds with 5" Foam Mattress w/Ladder/Convertible Wardrobe (38N)
  • Bunk Bed Bedspreads and Privacy Curtains (38N)

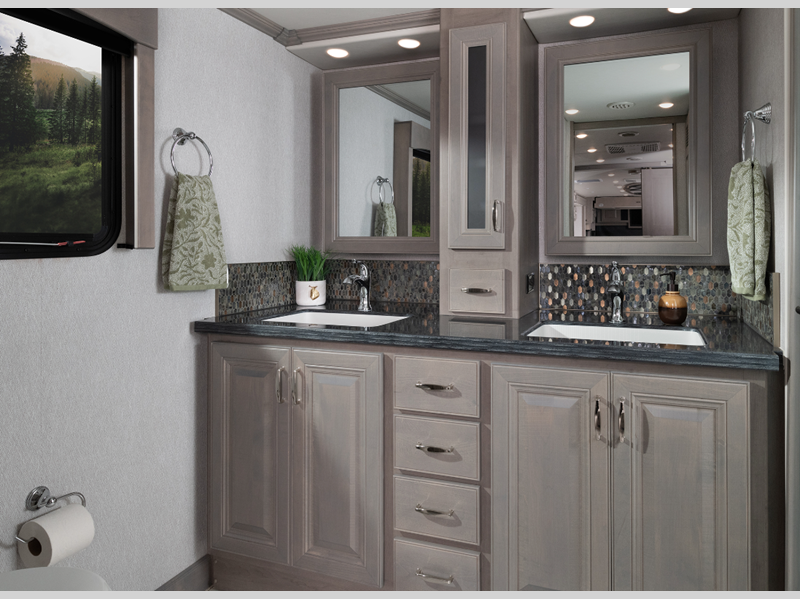

Bathroom

  • Polished Solid Surface Lavy Countertop
  • Polished Solid Surface Lavy Shelf (38N) (38K)
  • Feature Lighting at Lavy Top
  • Tile Backsplash
  • Stainless Undermount Lav Sink
  • Residential Brushed Nickel Double Handle Faucet
  • Deluxe Hardwood Medicine Cabinet w/Mirror
  • Fiberglass Colored Shower Pan and Surround
  • Glass Shower Door
  • Shower Skylight
  • Metal Shower Head w/ On/Off, Sliding Adjustable Bar, Soap Dish and Matching Single Vale Faucet
  • Porcelain Foot-Flush Toilet w/Water Saver (38N) (38K)
  • Porcelain Maserator Toilet
  • Roof Vent Fan
  • Manual Night Roller Shade - Black
  • Accessories: Dual Towel Rings and Toilet Paper Holder - Satin Nickel

Entertainment

  • LG 32″ Flat Screen LED TV (Front Overhead)
  • LG 32″ Flat Screen LED TV (Bedroom) (38N) (38K)
  • LG 43″ Flat Screen LED TV (Bedroom) (38F)
  • LG 43″ Flat Screen LED TV (Living Room) (38N) (38K)
  • LG 49″ Flat Screen LED TV (Living Area) (38F)
  • BOSE SOLO 5 TV Sound System
  • LG BLU-RAY Players in Living Area
  • Two (2) LED TV/DVD Combo in Bunk Bed Area (38N)
  • Exterior Entertainment 48" TV Sound Bar

Electric & Utilities

  • FIREFLY Multiplex Wiring
  • Air Conditioner: 2-Roof Mount High Efficiency Ducted 15,000-BTU w/Chill Grill & Rear Heat Pump
  • 3rd A/C Optional IN (38N) (38K) (38F)
  • Aqua Hot 400
  • 2000-Watt Inverter/100-Amp Converter
  • Service: 50-AMP
  • 8.0 KW Onan® Quiet Diesel Generator
  • (2) 6V Heavy Duty Chassis Batteries
  • (4) Auxiliary House Batteries
  • Prewired - Roof Mounted Solar Panel
  • Energy Management System
  • Auto Gen Start
  • Battery Disconnect Switch
  • LP/CO & Smoke Detectors, Fire Extinguisher
  • Power Cord Reel
  • Black Tank Flush System
  • Water Pump: 12V 3GPM High Capacity Shurflo Water Pump
  • Water Purification System (Whole Coach)
  • Electrical System w/Neutral Loss Protection
  • Cable TV/Satellite Hookup
  • Central Vacuum System
  • Surge Guard Transfer Switch
  • Tank Level Monitor System
  • Stackable Washer & Dryer
  • Enclosed & Heated Holding Tanks

Chassis

  • Front Suspension: Neway Air Suspension
  • Rear Suspension: V-Ride Air Suspension
  • 55 Degree Wheel Cut
  • Front Brakes: 17" Air Disc Brakes w/Abs
  • Rear Brakes: 16.5 x 7" Drum Style S-Cam w/ ABS
  • Tuned Sachs Shocks
  • Power Assisted Steering

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

Manu-Facts:

About Us



For more than 65 years, Fleetwood RV has worked hard to build a reputation as one of the best motorhome manufacturers in the industry. Today, more RVers trust the open road to Fleetwood RV.* That trust starts with the Fleetwood Advantage, our ceaseless approach to innovating the motorhome construction process with emphasis on smooth handling, unmatched durability, and intuitive details. The result? Fleetwood delivers dependable products with peace-of-mind at every turn so families can spend more time reconnecting with each other.



* Based on IHS Automotive, Polk Recreational Vehicles in Operation (RVIO) as of 7/1/13.
