Traveling and camping in luxury is easier than you think with the Armada Class A diesel motorhomes by Holiday Rambler! The Armada lets you get into your adventure while still providing you with the things you love most about home. Spacious beds, hot showers, comfortable relaxation, and deluxe meals are just around the corner!



The heavy-duty Freightliner Custom chassis with Titan Bridge is just one of the reasons you should choose the Armada. Another reason is the DriveTech/Optiview display and control system that makes each driving experience safe. You'll be able to host an outdoor movie night with the Bluetooth soundbar at the exterior entertainment center, and each coach has three 15,000 BTU roof air conditioning units to help you stay cool. The interior décor is absolutely stunning with porcelain tile flooring, coordinating window treatments, glass tile backsplash, and hardwood cabinetry, and you get to customize the interior to suit your style preference by choosing one of the three décor selections and four cabinetry finishes.



The Holiday Rambler Armada Class A diesel motorhome lets you enjoy the benefits of a fancy resort without having to book a reservation!

  • Armada 40M

    Armada 40M Floorplan Image

    Take a Virtual Tour

    Holiday Rambler Armada Class A diesel motorhome 40M highlights: Full-Wall Slide ... more about Armada 40M

    Specifications

    Sleeps 6
    Slides 3
    Length 40 ft 1 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Baytown, Riviera, Waterford

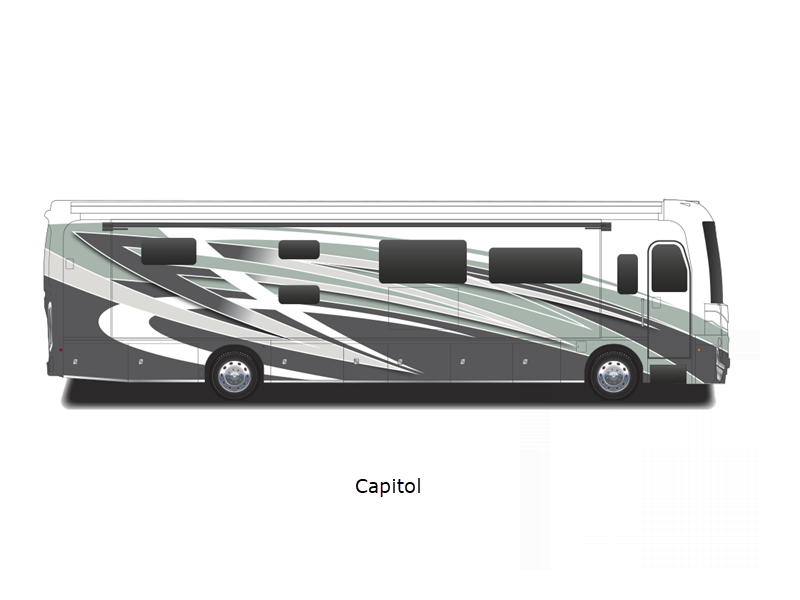

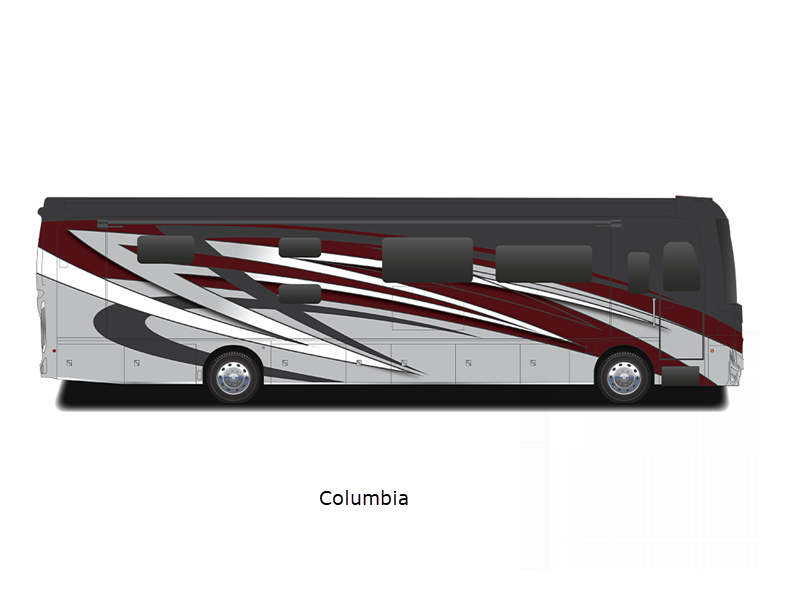

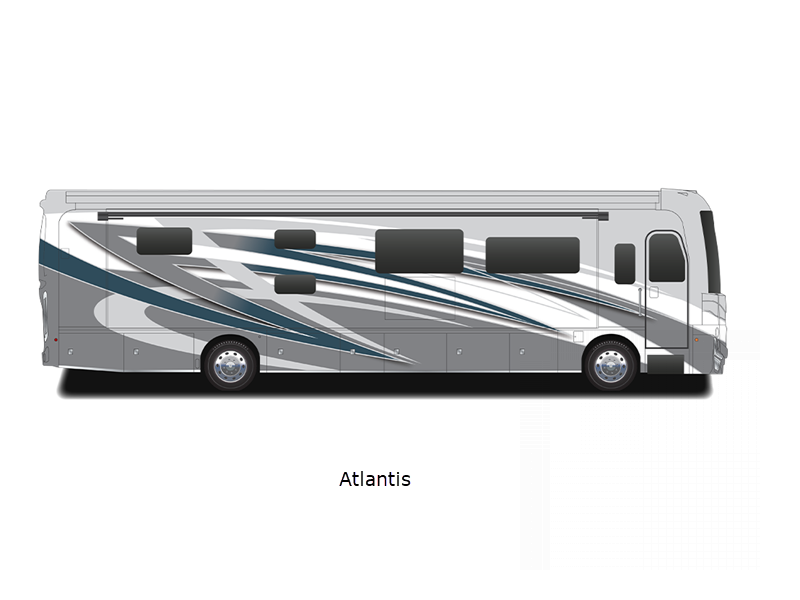

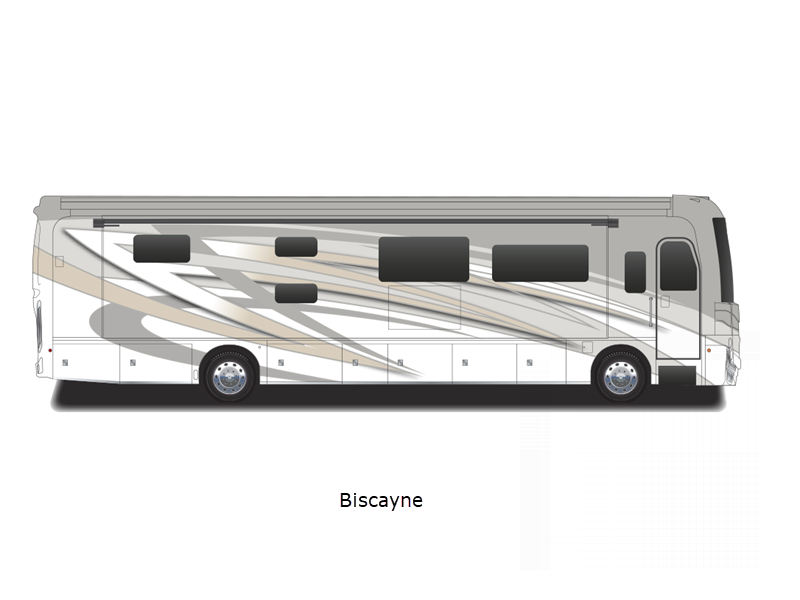

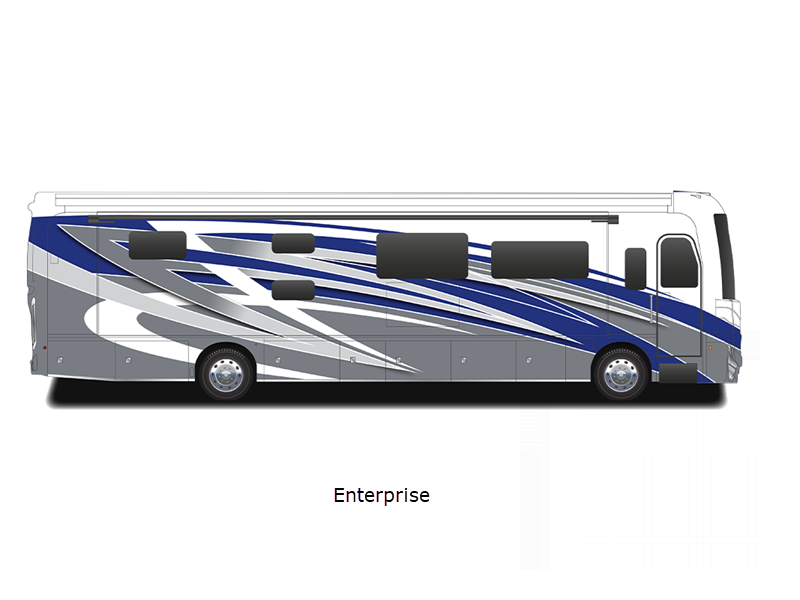

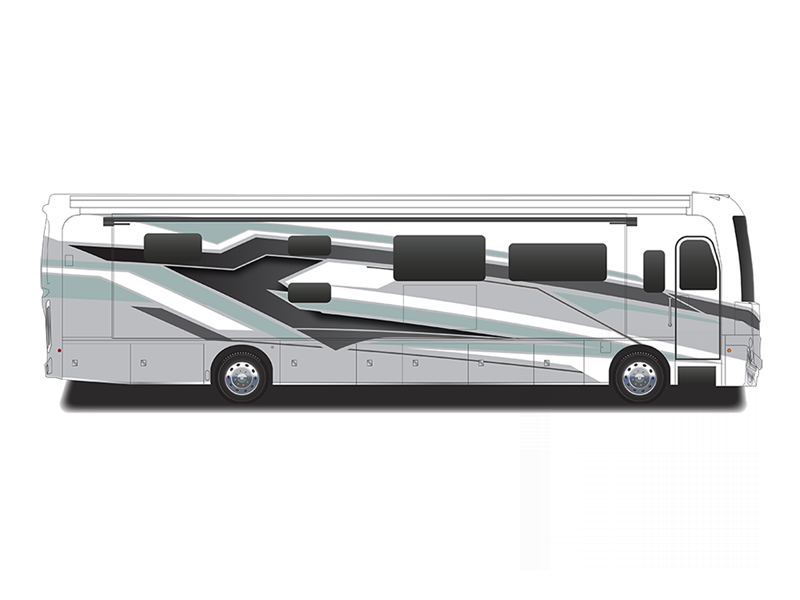

    Exterior Color Atlantis, Biscayne, Capitol, Columbia, Enterprise, Voyager
    Hitch Weight 10000 lbs
    GVWR 36600 lbs
    Fresh Water Capacity 105 gals
    Grey Water Capacity 75 gals
    Black Water Capacity 50 gals
    Tire Size 275/80R 22.5H
    Generator 8000W Onan Quiet Diesel
    Fuel Type Diesel
    Engine Cummins L9
    Chassis Freightliner XCM
    Horsepower 380 hp
    Fuel Capacity 100 gals
    Wheelbase 263 in
    Available Beds King
    Torque 1150 ft-lb
    Refrigerator Type Stainless Steel Residential with Ice/Water in Door
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 50" x 28"
    Number of Awnings 2
    Axle Weight Front 12600 lbs
    Axle Weight Rear 24000 lbs
    Water Heater Type Aqua Hot 400D
    AC BTU 45000 btu
    Basement Storage 142 cu. ft.
    TV Info LR Pop-up LED TV, Overhead LED TV, BR LED TV, Ext. LED TV
    Awning Info 18' Electric with LED Lights and Motion Sensor Retract
    Washer/Dryer Available Yes
    Gross Combined Weight 46600 lbs
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

  • Armada 40P

    Armada 40P Floorplan Image

    Take a Virtual Tour

    Holiday Rambler Armada Class A diesel motorhome 40P highlights: Fireplace with ... more about Armada 40P

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 8
    Slides 3
    Length 40 ft 1 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Baytown, Riviera, Waterford
    Exterior Color Atlantis, Biscayne, Capitol, Columbia, Enterprise, Voyager
    Hitch Weight 10000 lbs
    GVWR 36600 lbs
    Fresh Water Capacity 105 gals
    Grey Water Capacity 75 gals
    Black Water Capacity 50 gals
    Tire Size 275/80R 22.5H
    Generator 8000W Onan Quiet Diesel
    Fuel Type Diesel
    Engine Cummins L9
    Chassis Freightliner XCM
    Horsepower 380 hp
    Fuel Capacity 100 gals
    Wheelbase 276 in
    Number Of Bunks 2
    Available Beds King
    Torque 1150 ft-lb
    Refrigerator Type Stainless Steel Residential
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 30" x 32"
    Number of Awnings 2
    Axle Weight Front 12600 lbs
    Axle Weight Rear 24000 lbs
    Water Heater Type Aqua Hot 400D
    AC BTU 45000 btu
    Basement Storage 153 cu. ft.
    TV Info LR Pop-up LED TV, Overhead LED TV, BR Pop-Up LED TV, Ext. LED TV
    Awning Info 18' Electric with LED Lights and Motion Sensor Retract
    Washer/Dryer Available Yes
    Gross Combined Weight 46600 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Armada 44B

    Armada 44B Floorplan Image

    Holiday Rambler Armada Class A diesel motorhome 44B highlights: Sofa Sleeper ... more about Armada 44B

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 9
    Slides 4
    Length 44 ft
    Ext Width 8 ft 6 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Baytown, Riviera, Waterford
    Exterior Color Atlantis, Biscayne, Capitol, Columbia, Enterprise, Voyager
    Hitch Weight 15000 lbs
    GVWR 43600 lbs
    Fresh Water Capacity 105 gals
    Grey Water Capacity 75 gals
    Black Water Capacity 50 gals
    Tire Size 275/80R 22.5H
    Generator 8000W Onan Quiet Diesel
    Fuel Type Diesel
    Engine Cummins L9
    Chassis Freightliner XCM
    Horsepower 450 hp
    Fuel Capacity 100 gals
    Wheelbase 309 in
    Number Of Bunks 2
    Available Beds King
    Torque 1250 ft-lb
    Refrigerator Type Stainless Steel Residential with Ice/Water in Door
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 31" x 46"
    Number of Awnings 2
    Axle Weight Front 13600 lbs
    Axle Weight Rear 20000 lbs
    Axle Weight Tag 10000 lbs
    Water Heater Type Aqua Hot 400D
    AC BTU 45000 btu
    Basement Storage 157 cu. ft.
    TV Info LR Pop-up LED TV, Overhead LED TV, BR LED TV, Ext. LED TV
    Awning Info 18' Electric with LED Lights and Motion Sensor Retract
    Washer/Dryer Available Yes
    Gross Combined Weight 58600 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Armada 44LE

    Armada 44LE Floorplan Image

    Take a Virtual Tour

    Holiday Rambler Armada Class A diesel motorhome 44LE highlights: Spacious ... more about Armada 44LE

    Specifications

    Sleeps 6
    Slides 3
    Length 44 ft
    Ext Width 8 ft 6 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Baytown, Riviera, Waterford
    Exterior Color Atlantis, Biscayne, Capitol, Columbia, Enterprise, Voyager
    Hitch Weight 15000 lbs
    GVWR 43600 lbs
    Fresh Water Capacity 105 gals
    Grey Water Capacity 75 gals
    Black Water Capacity 50 gals
    Tire Size 275/80R 22.5H
    Generator 8000W Onan Quiet Diesel
    Fuel Type Diesel
    Engine Cummins L9
    Chassis Freightliner XCM
    Horsepower 450 hp
    Fuel Capacity 100 gals
    Wheelbase 309 in
    Available Beds King
    Torque 1250 ft-lb
    Refrigerator Type Stainless Steel Residential with Ice/Water in Door
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 56" x 38"
    Number of Awnings 2
    Axle Weight Front 13600 lbs
    Axle Weight Rear 20000 lbs
    Axle Weight Tag 10000 lbs
    Water Heater Type Aqua Hot 400D
    AC BTU 45000 btu
    Basement Storage 157 cu. ft.
    TV Info LR Pop-up LED TV, Overhead LED TV, BR LED TV, Ext. LED TV
    Awning Info 18' Electric with LED Lights and Motion Sensor Retract
    Washer/Dryer Available Yes
    Gross Combined Weight 58600 lbs
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

Armada Features:

Standard Features (2025)



Chassis Components

  • Tuned SACHS® Shocks
  • Push Button Start
  • Power Assisted Steering
  • Steerable Tag (FCCC UltraSteer) (N/A 40M, 40P)
  • DriveTech Steering Wheel w/Optiview Instrument Cluster (FCCC)
  • BrakeSync (FCCC) (Optional)
  • (2) 12V Heavy Duty Chassis Batteries
  • CSA Package - FCCC (Optional)
  • Valve Stem Extensions
  • Front and Rear Aluminum Wheels
  • Tire Pressure Monitoring System

Construction

  • Heated Fresh Water and Holding Tank Compartments (w/Aqua Hot Operational)
  • Vacu-Bond Aluminum Framed Constructed Sidewalls, Roof and Floors
  • High Density Polystyrene Insulated Sidewalls, Roof and Floor
  • Dryseal Edge Coating for all Ceilings, Walls and Floors
  • Quiet Insulated, Ducted A/C System
  • Painted Steel Frame Chassis Construction
  • Premium Gel Exterior Vetrosina Fiberglass Skin (No Wood Substrate)
  • Electric Slideout Systems
  • Full Coverage Heavy Duty Undercoating
  • Full Pass Through Basement Storage w/Composite Floor and Wall Construction
  • Steel Constructed Entry Step Box
  • Powerlock System - Interlocking Floor, Walls and Roof

Exterior

  • Exterior Park Cable and Satellite Hookup
  • Full Bay Slide Trays - 2nd Bay Single 90" (Optional)
  • Oversized Dark Tinted Frameless Windows
  • Fiberglass Rear Cap Assembly
  • Fiberglass Wheel Well Skirts
  • Basement Pass-Through Storage
  • Luggage Trim trim
  • Side Swing Aluminum Bus-Style Baggage Doors w/Locking Handles
  • Full Bay 90" Slide Tray
  • Slideout Awning Toppers Above All Slideouts
  • Front, Side and Rear Clearance and Marker Lighting
  • Porch Light w/Interior Switch
  • Fiberglass Front Cap Assembly
  • Automatic Hydraulic Leveling Jacks
  • Patio Lighting
  • Front and Rear Mud Flaps
  • Electric Patio Awning w/LED Lighting and Motion Sensor Retract
  • Roof Vent Rain Covers
  • 2nd Roof Mounted Awning (Optional)
  • Lighted Acrylic Grab Handle at Entry Door
  • Basement Storage LED Lighting
  • Automatic Entrance Steps
  • Rear Ladder
  • Entry Door w/Radiused Upper, Deadbolt and Screen Door
  • King Universal Stationary Satellite
  • Window Awning Package (Optional)
  • 4-Color Premier Full Body Paint
  • Molded-Fiberglass One-Piece Roof
  • 7-Way Round Tow Connection
  • Powered Entrance Awning w/LED Lighting
  • Exterior Freezer (Optional)
  • Satellite Delete (Optional)
  • Winegard In-Motion Satellite (Optional)
  • Unidirectional HD On-Air Antenna
  • Exterior Service Station - Includes: Water Pump Switch, Exterior Shower, Black Tank Flush, City Water Hookup,
  • Towel Holder and Drainage Valves
  • Front Cap Generator Access
  • Full Length Rearguard w/Nameplate
  • Undercarriage LED Lights
  • Rear Under Hood Utility Light

Cab Exterior

  • Front Mount, Remote Power/Heated Mirrors w/Turn Signals and Side Cameras
  • Fog Lamps
  • Tinted Slider Driver Window
  • Blind Spot Detection (Optional)
  • Automotive One Piece Windshield
  • Top Mount Automotive Style Windshield Wiper System
  • Lower Front Clear Protective Film
  • Daytime Running Lights

Interior

  • Porcelain Tile Flooring
  • Power Motion Lounge (Standard; 44LE) (Optional; 40M, 40P, 44B)
  • Sofa w/Full Sleeper Bed (N/A 44B)
  • U-Shape Dinette (44B Only)
  • Electric Fireplace (Living Area) (N/A 44B, 44LE)
  • Stackable Washer and Dryer (N/A 44B)
  • Hardwood Cabinetry
  • Hardwood Ceiling Feature Trim w/Lighting
  • Energy Efficient LED 3" Flush Mount Ceiling Lighting
  • 120V/USB Receptacles
  • Floor Heat (Living Area)
  • Free Standing Dinette w/Credenza (Standard; 40M, 40P, 44LE) (Optional; 44B)
  • Side-By-Side Washer and Dryer (44B Only)
  • Sofa w/Queen Sleeper Bed & Ottoman(s) (44B Only)
  • Interior Soft Touch Vinyl Ceiling
  • Loveseat w/Storage (N/A 44B)
  • Floor Heat (Rear) (Optional)
  • Sofa w/Storage (44B Only)
  • Facing Dinette Booth (Optional; N/A 40P)
  • Dual Recliners (Optional; 44B Only)
  • Coordinating Window Treatments
  • Full Extension Drawer Guides w/Latches
  • Manual Day/Night Roller Shades
  • Hidden Hinge Cabinet Doors

Interior Entry

  • Power Entry Step Cover
  • Battery Disconnect Switch at Entry Console
  • Entry Door Manual Roller Shade and Blind
  • Metal Interior Grab Handle
  • Solid Surface Entry Step w/LED Accent Lighting

Electric and Utilities

  • Black Holding Tank San-T-Flush System
  • Inverter: Single 2000W Pure Sine w/Remote
  • Safe-T-View Camera System
  • A/Cs w/Condensation Pump (Optional)
  • Sensored Tank Monitoring through Multiplex
  • Energy Management System (EMS)
  • Electric Water Hose Reel
  • Service Panel: 50 Amp, 120 Volt
  • Generator Auto Changeover
  • 100W Solar Panel
  • Auto Gen Start
  • Generator: 8000W Onan Quiet Diesel
  • Aqua-Hot 400D
  • Air Conditioners: (3) 15,000 BTU Roof Mount, Ducted w/Chill Grill and Rear Heat Pump
  • Batteries: (6) 6V Deep Cycle House Batteries
  • Water Accumulation System
  • High Capacity Water Pump
  • Water Filtration System (Whole Coach)
  • Neutral Loss Protection
  • Electric Power Cord Reel
  • Transfer Switch w/Surge and Reverse Polarity Protection
  • Cable TV/Satellite Hookup
  • CO and Smoke Detectors, Fire Extinguisher
  • Multiplex Wiring System
  • Dual Gravity Water Fill
  • Power Converter: 60 Amp
  • Central Vacuum System

Kitchen

  • Polished Solid Surface Sink Covers
  • Stainless Steel OTR Convection Microwave
  • Polished Solid Surface Galley Countertop
  • Full Extension Drawer Guides w/Latches
  • 2-Burner Induction Cooktop
  • Residential Faucet w/Pullout Sprayer
  • Stainless Steel Farmhouse Sink
  • Shadow Box Glass Tile Backsplash w/Window and Shade
  • Adjustable Shelving
  • Dishwasher
  • Power Vent
  • Stainless Steel Residential Refrigerator
  • Pantry Storage
  • Waste Basket

Bedroom/Bunk

  • 120V/USB Receptacles at Nightstand(s)
  • Individual Reading Lights at Bed Overhead
  • Headboard
  • Spacious Wardrobe Storage w/Hardwood Doors
  • Encore Series King Bed
  • 28" x 73" Bunk Beds w/4" Foam Mattress (44B Only)
  • Solid Surface Bedroom Countertops
  • Designer Bedspread and Pillows w/Shams
  • Remote Generator Start Switch

Bathroom

  • Medicine Cabinet w/Mirror
  • Showermiser
  • Towel Ring(s) and Toilet Paper Holder
  • Tile Shower
  • Residential Sink(s)
  • Power Vent(s)
  • Shower Skylight
  • Accent Lighting
  • Residential Faucet(s)
  • Porcelain Toilet w/Macerator
  • Tile Backsplash
  • Glass Shower Door
  • Designer Shower Head Assembly
  • Polished Solid Surface Countertop(s)

Entertainment

  • Mid Wall LED TV (Living Area) (Optional; 40M Only)
  • Exterior Entertainment Center w/LED TV and Bluetooth® Soundbar
  • LED TV (Bedroom)
  • LED TV (Front Overhead)
  • Pop-up LED TV (Living Area)
  • Soundbar TV Sound System (Living Area)

Cab Interior

  • Switch for Exterior Service Lights
  • Driver and Passenger Side Manual Roller Shades and Blinds
  • Hide-A-Loft™ Power Drop-Down Overhead Bunk w/LED TV (Optional)
  • Color Backup Monitor
  • Driver and Passenger Overhead Storage Cabinetry
  • 10.2" Stereo w/Touch Screen w/AM/FM/CD/DVD/Bluetooth/Navigation/APP Store/Wi-Fi
  • Dash Air Conditioning and Heat
  • Electric Alert Horn
  • Passenger Console
  • Radio Switch Main/Auxiliary Power at Dash
  • Passenger Seat w/Reclining Back, Swivel, 6-way Power Controls, Heat and Power Footrest
  • Seat Belts - 3 Point Driver and Passenger
  • Momentary Battery Booster Switch - Connecting Chassis and House Batteries
  • LED Optiview Instrument Panel
  • Extended Stay Bureau (Optional; 40P Only)
  • Automatic Leveling Jacks Touchpad Controls
  • Power Locks w/Key FOB Control
  • Front Power Roller Blind
  • Sirius/XM Satellite Radio Ready (Requires Subscription)
  • Driver Seat w/Reclining Back, Swivel, 6-way Power Controls, Heat
  • Switch for Power/Heated Mirrors
  • Driver Console w/Lower Storage Bin
  • Electronic Cruise Control
  • Air Suspension Deflation System (w/Tag Dump Switch on 44' Floor Plans) (N/A 44B, 44LE)
  • Adjustable Suspended Pedals
  • 12V and USB Accessory Ports
  • Windshield Wipers w/Delay
  • Automotive Style Wrap Around Dash
  • 120V AC Outlet at Dash and Passenger Area
  • Keyless Entry w/Remotes

Please see us for a complete list of features and available options.

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Manu-Facts:

Holiday Rambler Logo

At Holiday Rambler, we believe spirited travelers should never settle. Which is why we make motorhomes that are built for the road—and far beyond. We design every model to be rugged, reliable and up for anything. Then we outfit the interior with extra storage and practical details. Inside and out, we thought of everything. All you need to bring is your sense of adventure. Because whether you’re on the road, off the beaten path, or parked alongside a scenic view—in a Holiday Rambler, this is living.



Our motorhomes are built to be driven 365 days a year, in almost any kind of road condition, wherever your wanderlust leads. When it comes to technology, we’re always trying new things and taking our ideas further than most—just like you.



Say goodbye to stick-and-frame construction. Our exclusive Powerlock System™ uses interlocking, extruded aluminum wall joints to integrate the floor, sidewall and roof assembly into one overall structure. It’s a strong, seamless fit that promises long-term performance and durability.



DriveTech’s ergonomically designed steering wheel and easy-to-reach, column-mounted controls turn piloting your RV into a driver-friendly automotive experience. And as the RV industry’s first LED instrument Cluster, OptiView™ has bright graphics, colors and menus, Bluetooth® connectivity and on-demand operation. Together, they both give you convenience and control, right at your fingertips.



Behind every grand adventure is a rugged, reliable chassis. To keep up with your wildest dreams, our motorhomes are built on the industry’s most trusted, time-tested chassis—including the Freightliner Titan Bridge®, the Ford® Power Platform and the Delta® Foundation. No matter where you wander, a Holiday Rambler chassis has the strength, storage and support to make sure you and your gear arrive safe and sound.



Holiday Rambler motorhomes are designed to go from "Point A" to "Point Z."  And everywhere in between.
