When you are traveling across the country or going full-time RVing, you will want the Navigator class A diesel motorhome by Holiday Rambler. These luxurious units feature many interior comforts, including Whirlpool appliances, hand-laid composite tile flooring, and a 7" color touchscreen Illumaplex system, plus so much more.



Each model includes a washer and dryer you won't want to travel without, and hardwood throughout that just adds to the luxury you'll find inside. The chef in the family will love the Navigator kitchen with its 21 cu.ft. side-by-side refrigerator, stainless steel over the range microwave oven, and adjustable shelves throughout for all the necessities. Make yourself right at home with the master suite that includes an Encore Series king bed, an LED TV, and plenty of storage for all your belongings.



Set out to new sights in a Navigator class A diesel motorhome by Holiday Rambler!





  • Navigator 37R

    Navigator 37R Floorplan Image

    Holiday Rambler Navigator class A diesel motorhome 37R highlights: Four Slides ... more about Navigator 37R

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 4
    Length 38 ft 8 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Copper Ridge, Impression, Reflection
    Exterior Color Brisk, Encore, Galaxy, Midnight
    Hitch Weight 10000 lbs
    Gross Weight 33000 lbs
    Fresh Water Capacity 105 gals
    Grey Water Capacity 75 gals
    Black Water Capacity 50 gals
    Tire Size 275/80R 22.5H
    Furnace BTU 25000 btu
    Generator 8kw Onan Quiet Diesel
    Fuel Type Diesel
    Engine Cummins ISB 6.7L
    Chassis Freightliner XCM Series
    Horsepower 340 hp
    Fuel Capacity 100 gals
    Wheelbase 245 in
    Available Beds King
    Torque 700 ft-lb
    Refrigerator Type Whirlpool Side By Side
    Refrigerator Size 21 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Number of Awnings 1
    Axle Weight Front 12400 lbs
    Axle Weight Rear 21000 lbs
    LP Tank Capacity 38.7 gals
    Water Heater Type Girard Tankless
    AC BTU 45000 btu
    Basement Storage 172 cu. ft.
    TV Info LR 49" LED TV, BR 32" LED TV, Cab 32" LED TV, Exterior 40" LED TV
    Awning Info 18' Electric w/LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 33000 lbs
    Shower Type Radius
    Electrical Service 50 amp

    Similar Floorplans

  • Navigator 38F

    Navigator 38F Floorplan Image

    Holiday Rambler Navigator class A diesel motorhome 38F highlights: Dual-Entry ... more about Navigator 38F

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 4
    Length 40 ft 1 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Copper Ridge, Impression, Reflection
    Exterior Color Brisk, Encore, Galaxy, Midnight
    Hitch Weight 10000 lbs
    Gross Weight 33000 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 75 gals
    Black Water Capacity 50 gals
    Tire Size 275/80R 22.5H
    Furnace BTU 30000 btu
    Generator 8kw Onan Quiet Diesel
    Fuel Type Diesel
    Engine Cummins ISB 6.7L
    Chassis Freightliner XCM Series
    Horsepower 340 hp
    Fuel Capacity 100 gals
    Wheelbase 263 in
    Available Beds King
    Torque 700 ft-lb
    Refrigerator Type Whirlpool Side By Side
    Refrigerator Size 21 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Number of Awnings 1
    Axle Weight Front 12400 lbs
    Axle Weight Rear 21000 lbs
    LP Tank Capacity 38.7 gals
    Water Heater Type Girard Tankless
    AC BTU 45000 btu
    Basement Storage 142 cu. ft.
    TV Info LR 49" LED TV, BR 43" LED TV, Cab 32" LED TV, Exterior 40" LED TV
    Awning Info 19'6" Electric w/LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 33000 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Navigator 38K

    Navigator 38K Floorplan Image

    Holiday Rambler Navigator Class A diesel motorhome 38K highlights: Bath and a ... more about Navigator 38K

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 3
    Length 38 ft 8 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Copper Ridge, Impression, Reflection
    Exterior Color Brisk, Encore, Galaxy, Midnight
    Hitch Weight 10000 lbs
    Gross Weight 33000 lbs
    Fresh Water Capacity 105 gals
    Grey Water Capacity 75 gals
    Black Water Capacity 50 gals
    Tire Size 275/80R 22.5H
    Furnace BTU 30000 btu
    Fuel Type Diesel
    Engine Cummins ISB 6.7L
    Chassis Freightliner XCM Series
    Horsepower 340 hp
    Fuel Capacity 100 gals
    Wheelbase 252 in
    Available Beds King
    Torque 700 ft-lb
    Refrigerator Type Whirlpool Side By Side
    Refrigerator Size 21 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Number of Awnings 1
    Axle Weight Front 12400 lbs
    Axle Weight Rear 21000 lbs
    LP Tank Capacity 38.7 gals
    Water Heater Type Girard Tankless
    AC BTU 45000 btu
    Basement Storage 127 cu. ft.
    TV Info LR 43" LED TV, BR 32" LED TV, Cab 32" LED TV, Exterior 40" LED TV
    Awning Info 18' Electric w/LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 33000 lbs
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

  • Navigator 38N

    Navigator 38N Floorplan Image

    Holiday Rambler Navigator Class A diesel motorhome 38N highlights: Full-Wall ... more about Navigator 38N

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 3
    Length 40 ft 1 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Copper Ridge, Impression, Reflection
    Exterior Color Brisk, Encore, Galaxy, Midnight
    Hitch Weight 10000 lbs
    Gross Weight 33000 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 75 gals
    Black Water Capacity 50 gals
    Tire Size 275/80R 22.5H
    Generator 8kw Onan Quiet Diesel
    Fuel Type Diesel
    Engine Cummins ISB 6.7L
    Chassis Freightliner XCM Series
    Horsepower 340 hp
    Fuel Capacity 100 gals
    Wheelbase 252 in
    Number Of Bunks 2
    Available Beds King
    Torque 700 ft-lb
    Refrigerator Type Whirlpool Side By Side
    Refrigerator Size 21 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Number of Awnings 1
    Axle Weight Front 12400 lbs
    Axle Weight Rear 21000 lbs
    LP Tank Capacity 38.7 gals
    Water Heater Type Girard Tankless
    AC BTU 45000 btu
    Basement Storage 127 cu. ft.
    TV Info LR 43" LED TV, BR 32" LED TV, Cab 32" LED TV, Exterior 40" LED TV
    Awning Info 10' 8" Electric w/LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 33000 lbs
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

Navigator Features:

Standard Features (2020)



Construction

  • Aluminum welded interlocking frames
  • Powerlock System - interlocking floor, walls, and roof
  • Dryseal edge coating for all wall and floors
  • Vacu-bonded aluminum framed constructed roof, sidewalls and floor
  • Premium gel exterior Vetrosina fiberglass skin (no wood substrate)
  • R-8 insulated sidewalls; R-10 insulated roof and R-9 insulated floor
  • Quiet insulated, ducted A/C system
  • Full pass through basement storage w/composite floor and wall construction
  • Heated fresh water and holding tank compartments
  • Titan Bridge chassis construction
  • Entry step box steel constructed
  • Electric main/bedroom/wardrobe/kitchen slide out systems
  • Steel frame chassis construction powder coated
  • Undercoating full coverage heavy duty
  • CSA build (Optional)

Exterior

  • 4-color premium full body paint
  • Fiberglass wheel well trims
  • One-piece molded fiberglass domed roof
  • Awning-electric patio awning w/LED lighting and wind sensor retract
  • Powered entrance awning w/LED lighting
  • Awning toppers above all slideouts-dometic
  • Entrance door-radius trimmed door w/black interior and black screen door, w/rotary latch, deadbolt lock and window
  • Grab handle: acrylic lighted at entry door
  • Side swing aluminum bus-style baggage doors/chrome handles
  • Windows-large dark tinted frameless windows throughout
  • LED patio lights-(at door and doorside slideout)
  • Porch light w/interior switch
  • Automatic hydraulic leveling jacks
  • LED clearance and marker lighting front, side and rear
  • Exterior service station - includes: water pump switch, exterior shower, black tank flush, city water hookup, towel holder & drainage valves, water heater bypass valve
  • Full-coach water filtration system
  • Exterior park cable and satellite hookup
  • 7-Ways round tow connection
  • Rear ladder-Brushed Aluminium color
  • Full length reargard w/nameplate
  • Front & rear mudflaps
  • Rear under good utility light
  • Antenna -unidirectional king controls jack antenna
  • Basement storage LED lighting
  • Heated holding tank compartment
  • Basement pass-through storage
  • King universal stationary satellite
  • LED lights  undercarriage
  • Full bay slide trays - 1st bay single 90"
  • Roof vent rain covers
  • Exterior entertainment center 48" LED TV
  • Luggage trims SS trim
  • 3rd roof A/C (Optional)
  • Satellite delete (Optional)

Cab Exterior

  • Two piece front fiberglass cap
  • One piece rear cap
  • One piece gen access
  • Automotive one piece windshield
  • Daytime running lights
  • Tinted slider driver/passenger windows
  • Fog lamps
  • Automotive style windshield wiper system
  • Remote power/heated mirrors w/turn signals and side cameras-Chrome
  • Lower front protective mask
  • Blindspot detection

Cab Interior

  • Dash inserts-driver instrument panels
  • Black instrument gauges w/electronic information center
  • Push button start
  • Evens high output dash A/C and heat
  • Air suspension deflation system
  • Electronic cruise control
  • Windshield wipers with delay
  • Keyless entry w/remotes
  • Switch for power/heated chrome mirrors
  • Switch for utility service compartment
  • Driver console w/lower storage bin
  • Power locks w/key FOB control
  • Monitor 7" backup color
  • Sirius/XM satellite radio ready (requires subscription)
  • Magnadyne 10.2 radio touchscreen w/AM/FM/CD/DVD/Bluetooth navigation/App Store/WiFi
  • Driver chair-ultra leather w/reclining back, swivel, and six-way power controls
  • Seat belts- three point driver & passenger w/adjustable straps
  • 12V and USB accessory ports
  • 110-Volt AC outlet at dash and passenger area
  • Automotive style wrap around dash
  • Passenger armrest w/solid surface top
  • Front power roller shades and blinds
  • Driver and passenger side manual roller shades and blinds
  • Radio switch main/auxiliary power at dash
  • Additional batter disconnect switch at dash
  • Momentary battery booster switch - connecting chassis and house batteries
  • Map lights
  • Overhead storage cabinetry driver/passenger
  • Air horns
  • Automatic leveling jacks w/touchpad controls
  • Hide-a-Loft power drop down overhead bunk w/mattress (Optional)

Interior

  • Sofa - 81" x 70" L-sofa w/jack-knife (N/A - 37R, 38F, 38N)
  • Sofa - 86" x 70" L-sofa w/air mattress (N/A - 37R, 38K, 38N)
  • Sofa - 78" sofa w/air mattress (N/A - 38F, 38K, 38N)
  • Chair - recliner swivel flide (N/A - 38K, 38N)
  • Sleeper sofa (N/A - 37R, 38K, 38N) (Optional)
  • L-sofa (N/A - 38F, 38K, 38N) (Optional)
  • Theater seat (N/A - 38F) (Optional)
  • Facing dinette booth (N/A - 38K, 38N) (Optional)
  • L-shaped dinette (N/A - 37R, 38F, 38K) (Optional)
  • Free standing dinette w/credenza (N/A - 37R, 38F) (Optional)
  • U-shaped dinette (N/A - 37R, 38N)

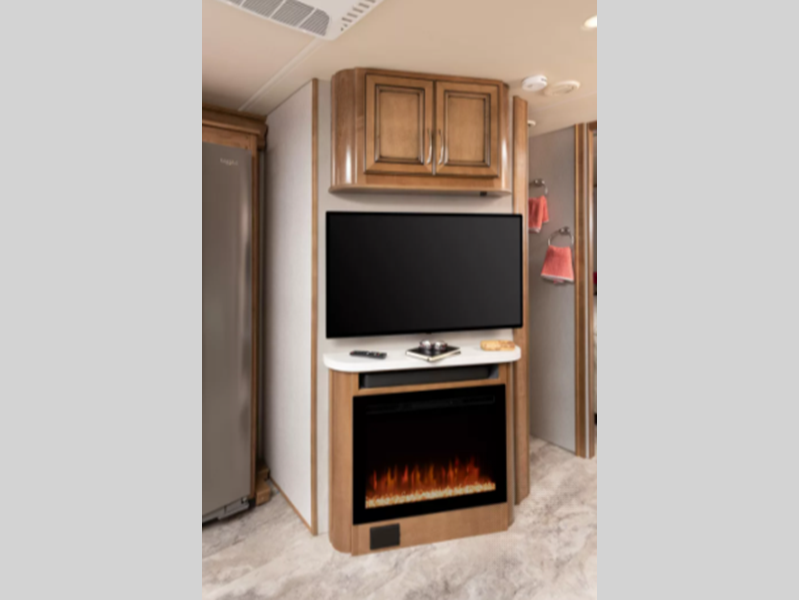

  • Fireplace electric
  • Sofa touch vinyl ceiling interior flat
  • Polished porcelain tile flooring throughout
  • Floor heat for living area
  • Full extension drawer guides throughout w/latches
  • Hidden hinge throughout
  • Hardwood throughout
  • Hardwood ceiling feature trim w/lighting
  • Coordinating valance w/ lambrequins
  • Day/night roller shades front/driver/pass - black/black, manual
  • Day/night roller shades throughout - color/ black, manual
  • Safe-T view camera system
  • 110V/USB ports throughout
  • Energy efficient LED 3" puck flush mount ceiling and accent wall lighting
  • Washer/dryer
  • Accent rope lighting (tops, living slide out trims, new ceiling trim)

Interior Entry

  • Entry step cover power
  • Entry step solid surface w/LED accent lighting
  • Battery disconnect at passenger cabinet
  • Metal interior grab handle at entry
  • Entry door manual roller shades and blinds
  • Step well lighted
  • Entrance steps automatic

Kitchen

  • Refrigerator; 36-inch wide counter depth side-by-side - 21 cu.ft. w/exterior ice & water dispenser
  • Cooktop: 2 burner high output induction electric
  • Microwave: stainless steel over the range 1000W convection
  • Polished solid surface galley countertop w/lighting
  • Shadow box glass tile backsplash w/window & shade
  • Stainless steel sink
  • Polished solid surface sink covers
  • Residential single handle faucet w/pullout sprayer
  • Adjustable shelves throughout kitchen
  • Full extension drawer guides w/latches
  • Fantastic power vent w/wall switch
  • Waste basket
  • Pantry
  • Dishwasher (Optional)

Bedroom or Bunk Area

  • King size Dream Easy Serenity memory foam mattress w/adjustable head (Wolf)
  • Bunk beds 28" x 73" w/5" foam mattress (N/A - 37R, 38F, 38K)
  • Designer bedspread, pillow shams & pillows
  • Headboard
  • Coordinating fabric window treatments and lambrequins
  • Remote generator start switch
  • Surfx bedroom tops
  • Hardwood cabinet wardrobe doors w/mirrors
  • Rear wardrobe closer Cedar lined
  • Dual rear wardrobe w/hinges rods (N/A - 38F)
  • Full rear wardrobe w/hinges rod (N/A - 37R, 38K, 38N)
  • Bunk bed barn door (N/A - 37R, 38F, 38K)
  • USB at nightstands
  • Individual reading lights bed overhead

Lavy

  • Polished solid surface lavy countertop
  • Polished solid surface lavy shelf (N/A - 37R, 38F)
  • Tile backsplash
  • Sink: Gemstone undermount
  • Residential Chrome double handle faucet
  • Deluxe Hardwood medicine cabinet w/mirrir
  • Hardwood raised panel doors
  • Fiberglass colored shower pan and surround
  • Shower door - glass
  • Shower skylight
  • Brush nickel shower head w/on/off, sliding adjustable bar, soap dish and matching single valve faucet
  • Toilet: porcelain macerator foot-flush w/water saver
  • Toilet: porcelain foot-flush w/water saver (N/A - 37R, 38F)
  • Fantastic power vent w/wall switch
  • Accessories: dual towel rings and toilet paper

Entertainment

  • LG 32" flat screen LED TV (Bedroom) (N/A - 38F)
  • LG 43" flat screen LED TV (Bedroom) (N/A - 37R, 38K, 38N)
  • LG 43" flat screen LED TV (Living area) (N/A - 37R, 38F)
  • LG 49" flat screen LED TV (living area) (N/A - 38K, 38N)
  • Bose Solo 5 TV sound system (living area)
  • Blu-Ray player w/remote
  • LG 32" flat screen LED TV (front overhead)
  • Ext. entertainment 40" TV sound bar w/Bluetooth (standard for 2019)
  • Two LED TV/DVD combo in bunk bed area (N/A - 37R, 38F, 38K)

Electric & utilities

  • A/C: roof mount high efficient ducted 15,000 BTu w/chill grill and rear has heat pump (3)
  • 25,000/25,000 BTU furnace (N/A - 38F, 38K, 38N)
  • 30,000/25,000 BTU furnace (N/A - 37R, 38N)
  • Precision circuits multiplex wiring
  • Service: 50 AMP, 120-volt service panel
  • Converter: 60 AMP power converter -precision circuits
  • Inverter: single 2000W pure sine w/remote - magnum
  • Energy management system (EMS) w/soft start -precision circuits
  • Neutral loss protection
  • Generator: 8kw Onan Quiet Diesel
  • Generator auto changeover
  • Auto gen start
  • Batteries: 6v deep cycle house batteries (4)
  • Water pump: 12V 3GPM high capacity Shurflo water pump
  • Water purification system (whole coach)
  • Black water tank flush
  • Gravity water fill DS/RS
  • Cable TV/Satellite hookup
  • Toilet tank san-flush system
  • Touch sensor tank monitoring and battery readout
  • CO & smoke detectors, fire extinguisher
  • Exterior GFCI receptacle in exterior storage
  • Central vacuum system
  • Surge guard transfer switch
  • Power cord reel
  • 100W solar panel
  • Technology Package (WiFi Ranger Sky4 Propack w/LTE, Weboost cell booster, Mobileye Eye Collision Mitigation, 265 watt solar panel)

Chassis

  • Front suspension: Newway air suspension
  • Rear suspension: V-ride air suspension
  • 55 Degree wheel cut
  • Front brakes: 17" air disc brakes w/ ABS
  • Rear brakes: 16.5" x 7" drum style S-Cam w/ ABS
  • Tuned sachs socks
  • Power assisted steering
  • Auto headlight (FCCC)
  • Electronic Dash (FCCC)

Please see us for a compete list of features and available options!

All standard features and specifications are subject to change.

















Manu-Facts:

Holiday Rambler Logo

About Us

At Holiday Rambler, your dream journey is our unwavering inspiration. Whether you’re planning a rambling weekend getaway or imagining a cross-country holiday adventure, we know that owning a motorhome is a dream lifestyle. We take that dream seriously. Every Holiday Rambler motorhome is designed with full-time RV living in mind, a dedication to building lifestyle RVs that deliver premier homelike features. Discover what makes Holiday Rambler perfect for getaways then start planning your RV resort stay. After all, “this is living …”
